A2 stainless steel hinge screw

We conduct regular quality audits in order to ensure quality standards are met. Our flagship product, the ROCKET screw, was designed internally, enabling its technical characteristics to be optimised (speed, tightening torque, breakaway torque, pull-out resistance).

As part of the CE marking to which ROCKET screws are subject, quality controls are carried out in the factory on each manufacturing batch, with a batch number used for product tracing purposes. All of our CE marked products undergo this same process.

Find out more about the regulations

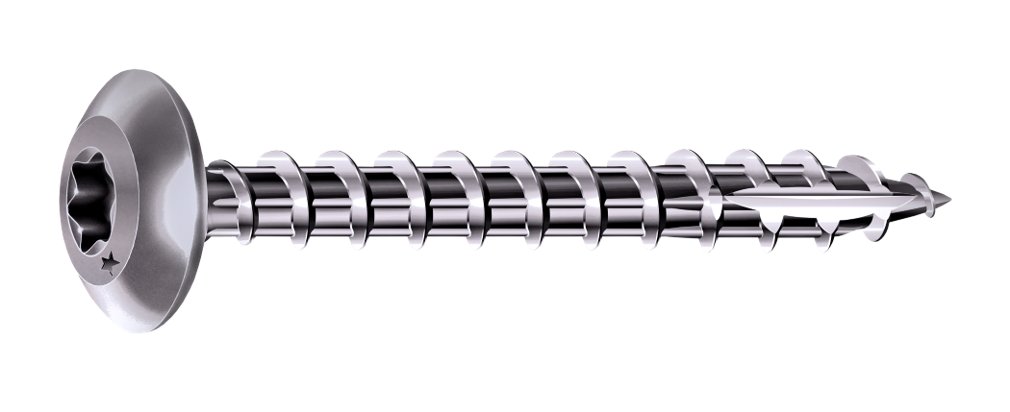

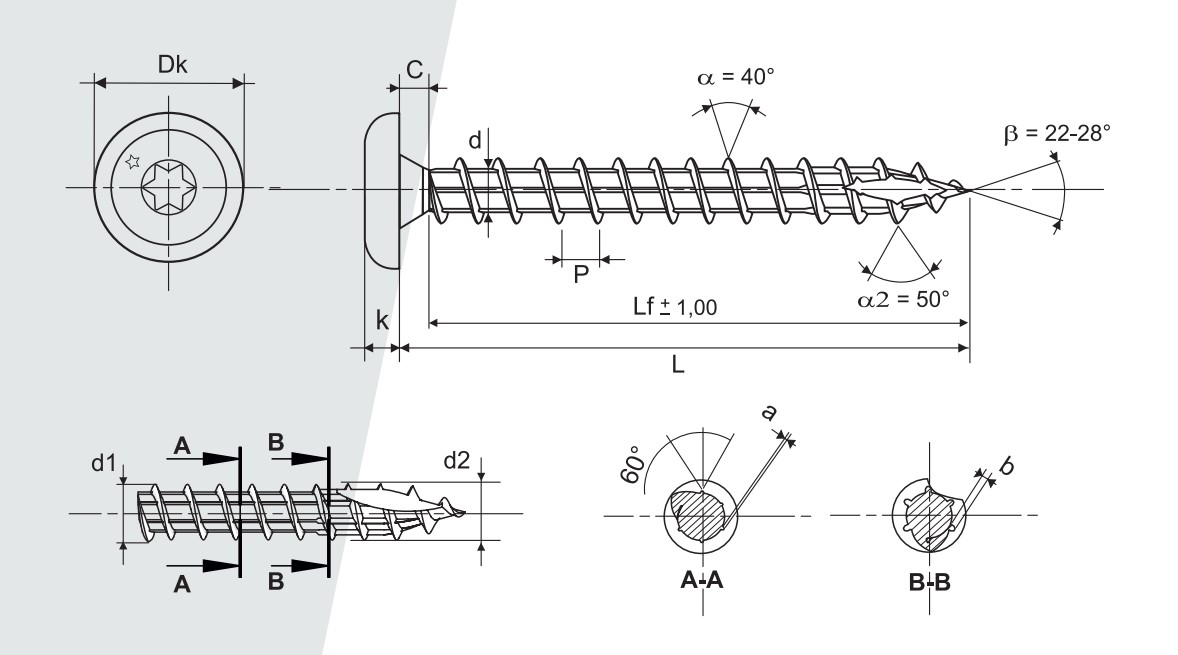

HINGE SCREW

A2 Stainless steel



Ø6 Ø7
Driver depth 2,10/2,50 2,10/2,50
N° driver T30 T30
Dk 13,87/14,55 13,87/14,55
C 1,00/2,50 1,00/2,50
k 3,00/3,40 3,00/3,40
d 3,65/4,10 4,10/4,60
P 3,50±10% 3,70±10%
d1 5,80/6,10 6,80/7,10
d2 6,05 7,05
a/b 0,22/0,45 0,25/0,48

All Ø 30/70
Tolerance -1,25

FOR EACH PROJECT, YOURS ROCKET SCREW
